Specifications
Model Designed
pumping

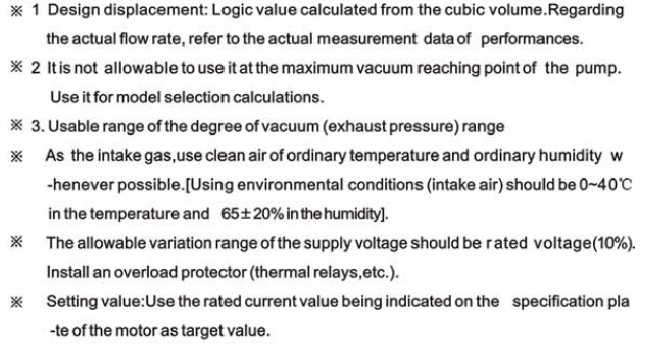

capacity （L/min)(※1)Ultimate
vacuum (kPa以上）（※2）Continuous
operational
vacuum (kPa以下）（※3）Continuous
operational
pressure (kPa以下）（※3）Suction/
exhaust
port dia.Voltage Noise
level （dB）Motor （kw） Mass (kg) Single phase 3 phase 100V 220V 200V 380V 400V 415V 440V Single
phase3
phase50Hz 60Hz 50Hz 60Hz Recom Max Recom Max 50/60Hz 50Hz 60Hz 50Hz 60Hz KRF15-P-□-□ V-01 235 280 84 86 60 75 ─ ─ Rc3/4 ○ ─ ─ ─ ─ ─ 62 64 0.4 22.5 ─ V-03 235 280 84 86 60 75 ─ ─ Rc3/4 ─ ○ ○ ○ ○ ○ 60 62 0.4 ─ 19 B-01 235 280 84 86 ─ ─ 60 70 Rc3/4 ○ ─ ─ ─ ─ ─ 64 65 0.4 22.5 ─ B-03 235 280 84 86 ─ ─ 60 70 Rc3/4 ─ ○ ○ ○ ○ ○ 64 65 0.4 ─ 19 VB-01 235 280 84 86 Total: sugg. 60,max.75 Rc3/4 ○ ─ ─ ─ ─ ─ 62 64 0.4 22.5 ─ VB-03 235 280 84 86 Total: sugg. 60,max.75 Rc3/4 ─ ○ ○ ○ ○ ○ 60 62 0.4 ─ 19 KRF25-P-□-□ V-01 405 480 86 90 60 80 ─ ─ Rc3/4 ○ ─ ─ ─ ─ ─ 64 66 0.75 31 ─ V-03 405 480 86 90 60 80 ─ ─ Rc3/4 ─ ○ ○ ○ ○ ○ 62 64 0.75 ─ 28 B-01 405 480 86 90 ─ ─ 60 70 Rc3/4 ○ ─ ─ ─ ─ ─ 67 69 0.75 31 ─ B-03 405 480 86 90 ─ ─ 60 70 Rc3/4 ─ ○ ○ ○ ○ ○ 65 67 0.75 ─ 28 VB-01 405 480 86 90 Total: sugg. 60,max.80 Rc3/4 ○ ─ ─ ─ ─ ─ 64 66 0.75 31 ─ VB-03 405 480 86 90 Total: sugg. 60,max.80 Rc3/4 ─ ○ ○ ○ ○ ○ 62 64 0.75 ─ 28 KRF40-P-□-□ V-03 575 685 86 90 60 80 ─ ─ Rc3/4 ─ ○ ○ ○ ○ ○ 66 67 1.5 ─ 37 B-03 575 685 86 90 ─ ─ 60 70 Rc3/4 ─ ○ ○ ○ ○ ○ 68 70 1.5 ─ 37 VB-03 575 685 86 90 Total: sugg. 60,max.80 Rc3/4 ─ ○ ○ ○ ○ ○ 66 67 1.5 ─ 37
-
