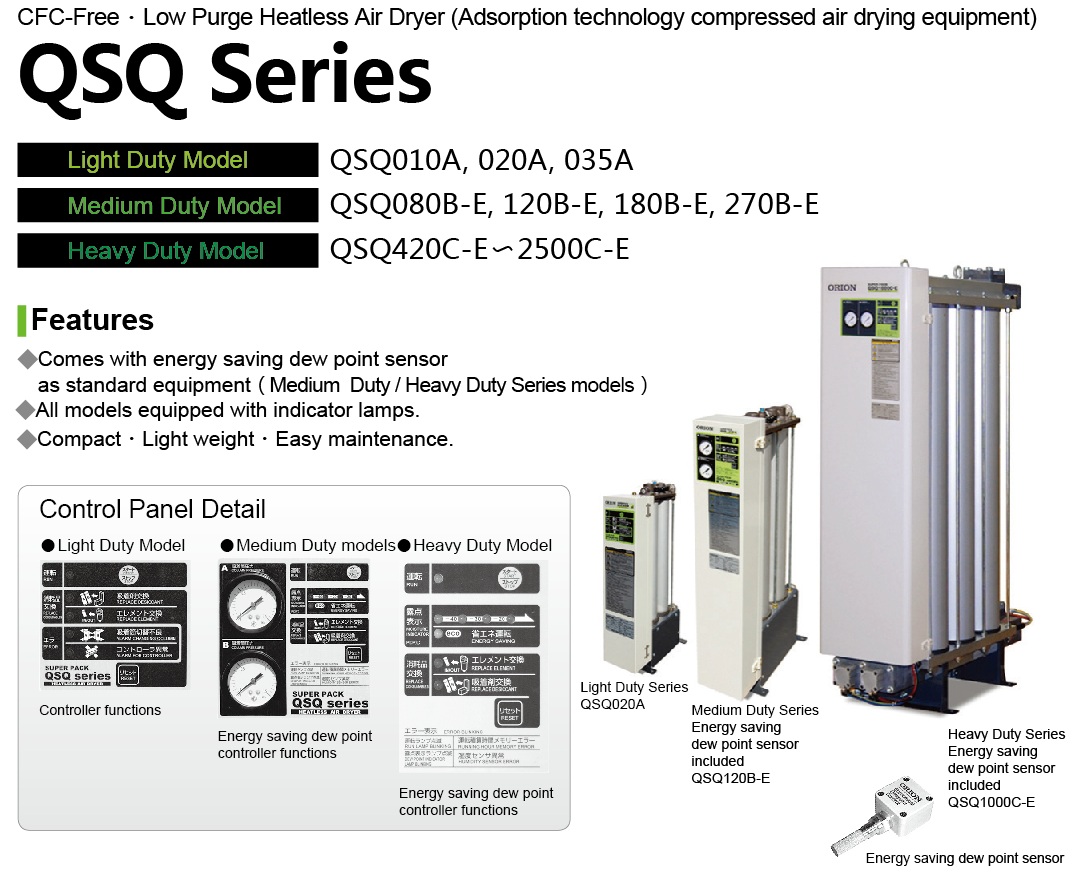

Product Features

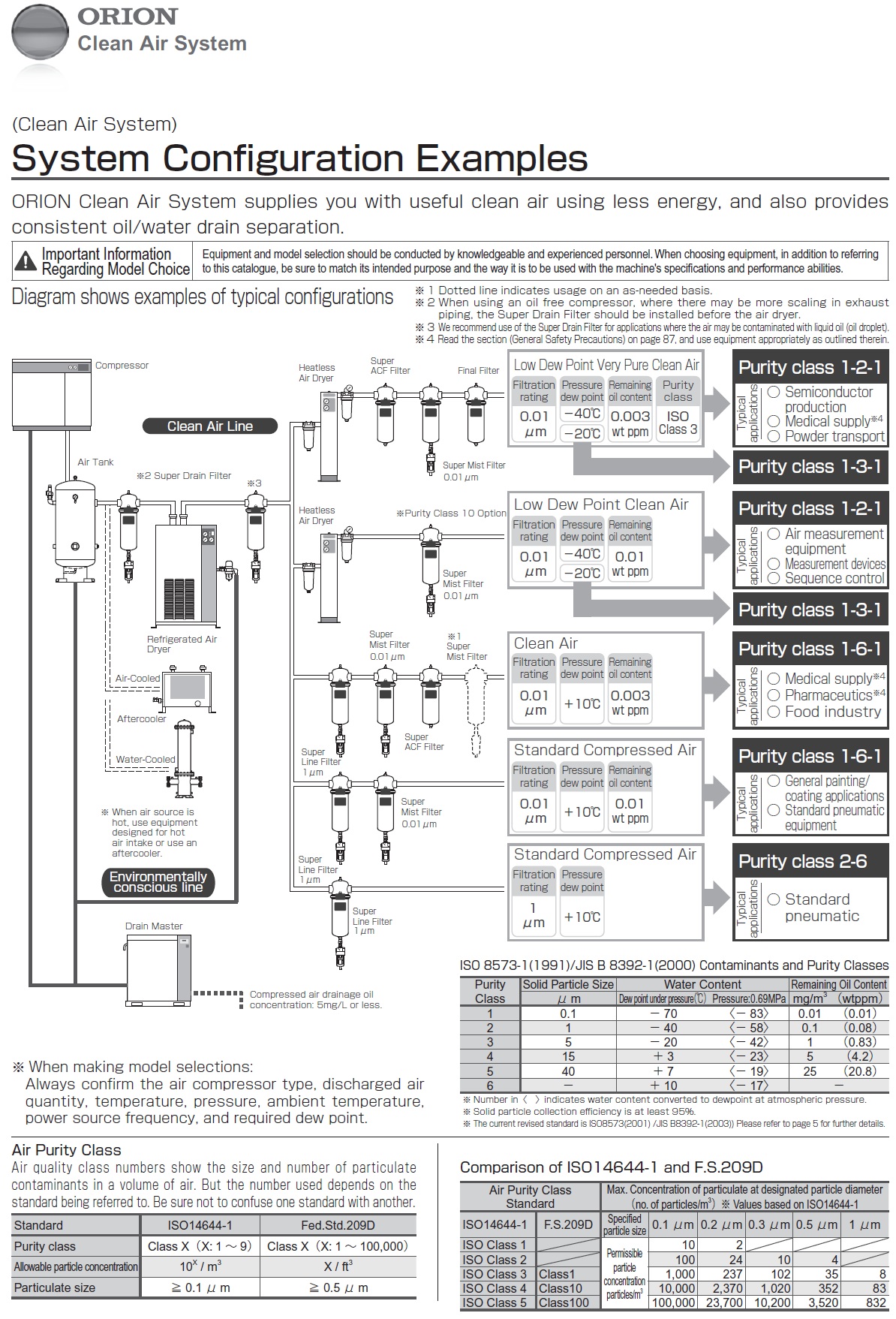

System Configuration Examples
Catalog Download
Manual Download

Specifications

Model			Small Series			Medium Series
Model			010A	020A	035A	080B-E	120B-E	180B-E	270B-E
Pressure dew point		℃	at atmospheric pressure: -40℃ (PDP-20℃ )
Processing Capacity	Inlet air capacity	㎥ /min	0.100	0.200	0.350	0.80	1.20	1.80	2.70
	Outlet air capacity	㎥ /min	0.086	0.172	0.300	0.68	1.03	1.54	2.30
	Purge air flow	㎥ /min	0.014	0.028	0.050	0.12	0.17	0.26	0.40
Operating ranges	Allowable Medium		Compressed air
	Max. air pressure	MPa	0.39 〜 0.98
	Ambient Temp	℃	2〜 40
	Inlet air condition	℃ /％	5 ～ 50/Less than saturated humidity (no water droplets)
Dimensions	Depth	mm	260			430
	Width	mm	113			163
	Height	mm	470	560	810	680	930	1130	1480
Mass		kg	7.5	8.5	11	26.5	34	43	53
Air pipe connection			Rc ⅜			Rc¾			Rc1
Purge air outlet			—			Rc½
Power Source (50/60Hz)			1ph 100/200/220/230
Accessory Filter
Incoming	MSF		75B			150B		200B	250B
Outgoing	LSF		75B			150B		200B	250B

Model			heavy Duty Series
Model			420C-E	700C-E	1000C-E	1400C-E	2000C-E	2500C-E
Pressure dew point		℃	at atmospheric pressure: -40℃ (PDP-20℃ )
Processing Capacity	Inlet air capacity	㎥ /min	4.20	7.00	10.00	14.00	20.00	25.00
	Outlet air capacity	㎥ /min	3.60	6.00	8.60	12.00	17.20	21.50
	Purge air flow	㎥ /min	0.60	1.00	1.40	2.00	2.80	3.50
Operating ranges	Allowable Medium		Compressed air
	Max. air pressure	MPa	0.39 〜 0.98
	Ambient Temp	℃	2〜 40
	Inlet air condition	℃ /％	5 ～ 50/Less than saturated humidity (no water droplets)
Dimensions	Depth	mm	589	763	937	1111	1296	1470
	Width	mm	335
	Height	mm	1475
Mass		kg	110	156	202	246	307	340
Air pipe connection			Rc1½			Rc2		Rc2½
Purge air outlet			Rc1
Power Source (50/60Hz)			1ph 100/200/220/230
Accessory Filter
Incoming	MSF		700-1-G2	1000-1-G2		2000-1-G2		2700C1-G2
Outgoing	LSF		700-G2	1000-G2		2000-G2		2700C1-G2

※ Processing air capacity is calculated based on compressor intake conditions (atmospheric pressure, 32℃, 75%.)
※ Processing conditions: Inlet air temperatureand humidity 35℃ less than saturated humidity (no water droplets),
※ For 24h continuous operation, a refrigerated dryer should be used just before this equipment or at an earlier stage. ※ For 24h continuous operation, a backup dryer should be made available.
※ Please contact ORION regarding custom built models of specifications outside the ranges listed above.
When the dryer is connected directly to the air compressor
※ If the inlet air pressure is more than 5℃ higher than the ambient temperature, be sure to install an after cooler (sold separately) or a refrigerated air dryer.
※ In case the compressor emits water mist, always install a Super Filter (for water droplet removal) (sold separately.)
※ Always use an air tank and install it before the dryer.
※ When installing a Super Filter (for water droplet removal) make piping as short as possible to help avoid further condensation.
